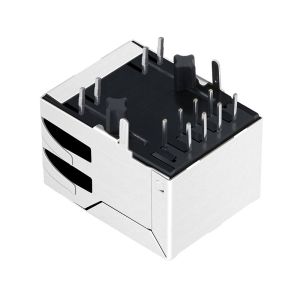

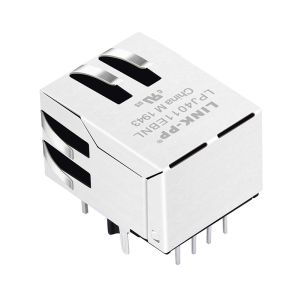

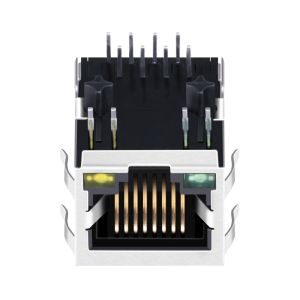

HR913129C Magnetic RJ45 Connector Specifications :

Features of HR913129C 1x1 Port Tab-UP RJ45 Connector:

1. Environmental and Safety Certifications

• RoHS Compliance: Lead-free (Pb-free) design, meeting environmental requirements.
• UL Certification: UL recognized component (File No. E330599), ensuring safety.

2. High-Performance Electrical Characteristics

IEEE 802.3 Standard Compatible:

• Minimum 350µH OCL (Open Circuit Inductance) under 8mA DC bias conditions.
• Complies with 2250V DC isolation voltage (IEEE 802.3 requirement).
• Excellent EMI Suppression: Optimized design to reduce electromagnetic interference.
• Low Crosstalk and Return Loss: Ensures signal integrity.

3. Design Optimization and Reliability

• PCB Space Savings: Integrated magnetic components (transformers/chokes) simplify layout.
• Reduced External Magnetic Components: Lower BOM costs, improved yields.
• High Reliability: Streamlined design minimizes failure points, suitable for industrial-grade applications.

4. Typical Applications

• Ethernet Devices (e.g., switches, routers, industrial communication modules).
• Embedded systems requiring high isolation voltage and EMI

Electrical Specifications ( 25°C)

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
