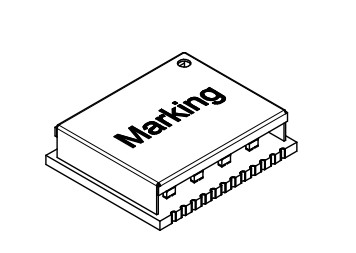

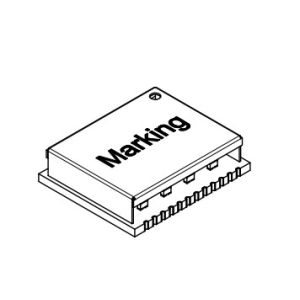

749020310 24PINs SMD 1000BASE-T Transformers With 350uH Inductance

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 749020310 24PINs SMD 1000BASET Transformers With 350uH Inductance
Brand: LINK-PP
Price: 0.7 USD

Add to Cart

Property	Test Conditions	Value	Unit	Tolerance
Inductance (L)	100 kHz / 100 mV @ 0 mA DC bias	350	µH	min.
DC Resistance 1	100 kHz / 100 mV (D side)	4500	mΩ	max.
DC Resistance 2	100 kHz / 100 mV (X side)	6000	mΩ	max.
Insertion Loss (IL)	1–100 MHz	-1.1	dB	max.
Return Loss (RL)	1–30 MHz @ 100 Ω	-18	dB	min.
Return Loss (RL)	30–60 MHz @ 100 Ω	-12	dB	min.
Return Loss (RL)	60–80 MHz @ 100 Ω	-12	dB	min.
Return Loss (RL)	80–100 MHz @ 100 Ω	-10	dB	min.
DCMR (Differential to Common Mode Rejection Ratio)	1–60 MHz	-35	dB	min.
DCMR	60–100 MHz	-30	dB	min.
Crosstalk (CT)	1–100 MHz	-35	dB	min.
Insulation Test Voltage	1 min.	1500	V (RMS)	—

1000 Base-T SMT Transformer 749020310 AQ Transformer
