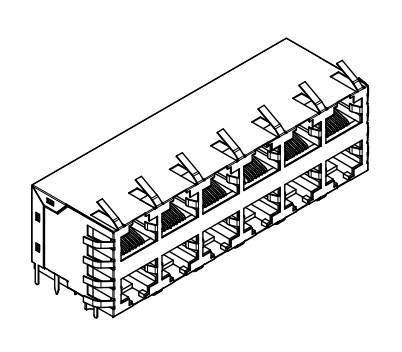

    Buy cheap 2x6 Stacked 615096243321 Shielded Modular Jack with EMI Panel Finger from wholesalers

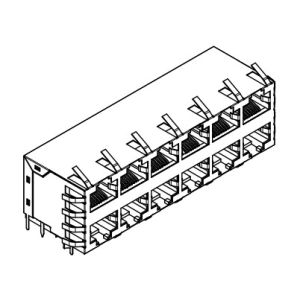

    Buy cheap 2x6 Stacked 615096243321 Shielded Modular Jack with EMI Panel Finger from wholesalers
    • Buy cheap 2x6 Stacked 615096243321 Shielded Modular Jack with EMI Panel Finger from wholesalers
    • Buy cheap 2x6 Stacked 615096243321 Shielded Modular Jack with EMI Panel Finger from wholesalers

    2x6 Stacked 615096243321 Shielded Modular Jack with EMI Panel Finger

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : 615096243321
    Certification : RoHS, EU and REACH
    Price : $0.09-$1.1
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 500K/Month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    2x6 Stacked 615096243321 Shielded Modular Jack with EMI Panel Finger

    615096243321 Modular Jack Specification:

    ManufacturerLINK-PP
    SeriesRJ45 8P8C Connectors
    Part Number615096243321
    Connector TypeModular Jack (RJ45)
    Configuration2x6 Stacked Port, 8P8C
    Tab OrientationTab Up & Tab Down
    Mounting TypeThrough-Hole (THT)
    ShieldingYes, with EMI panel fingers
    Rated Current1.5 A
    Working Voltage120 V AC
    Withstanding Voltage1000 V AC for 60 seconds
    Contact Resistance≤ 20 mΩ
    Insulation Resistance≥ 500 MΩ at 500 V DC
    Operating Temperature Range-40°C to +85°C
    Durability500 Mating Cycles
    Insulator MaterialPA9T (Black), UL94 V-0 Flammability Rating
    Contact MaterialCopper Alloy, Selective Gold over Nickel Plating
    Shielding MaterialCopper Alloy (Brass), Nickel Plated
    Length87.04 mm
    Width (Depth)25.24 mm
    Height25.20 mm
    Pin Pitch1.27 mm × 2.54 mm ±0.15 mm
    ComplianceRoHS, REACH, UL
    ApplicationsSwitches, Routers, Servers, Industrial Ethernet Equipment

    615096243321 Datasheet - Recommended Hole Pattern:

    615096243321 Datasheet - Recommended Hole Pattern
