2x6 RJ45 MagJack 1-1840055-4 1000BASE-T Ethernet ICM Fast Delivery

Ask Lasest Price
Brand Name :	Link-pp
Model Number :	1-1840055-4
Certification :	RoHS, REACH
Price :	$0.9 - $2.1
Payment Terms :	TT, NET30/60/90 Days, Western Union
Supply Ability :	20K Pieces per Week
Delivery Time :	About 3-5 Days

Add to Cart

Product Details
Company Profile

2x6 RJ45 MagJack 1-1840055-4 1000BASE-T Ethernet ICM Fast Delivery

1-1840055-4 MagJack Overview:

The 1-1840055-4 Magjacks ICM is a 12-port (2x6) RJ45 connector with Integrated Magnetics designed for 1000BASE-T applications. Combining integrated magnetics and LED indicators within a compact, shielded housing, it delivers robust signal integrity, power efficiency, and real-time network status monitoring. This module is ideal for high-density networking equipment requiring reliable data and power transmission in industrial, commercial, and IoT environments.

Technical Specifications:

Part Number	1-1840055-4
Series	Integrated Connector Module (ICM)
Connector Type	RJ45 MagJack
Number of Ports	2x6
Ethernet Speed	10/100/1000BASE-T
LED Indicators	Yes (Green/Yellow per port)
Tab Direction	Up and Down
Mounting Type	Through-Hole (THT)
Orientation	Right Angle (90°)
Shielding	Yes
Operating Temperature	0°C to +70°C
Contact Material	Phosphor Bronze
Contact Plating	Gold (50µin / 1.27µm)
Shield Material	Brass
Housing Material	Thermoplastic (UL 94V-0 rated)
Turn Ratio(±5%)	1:1
Compliance	RoHS Compliant

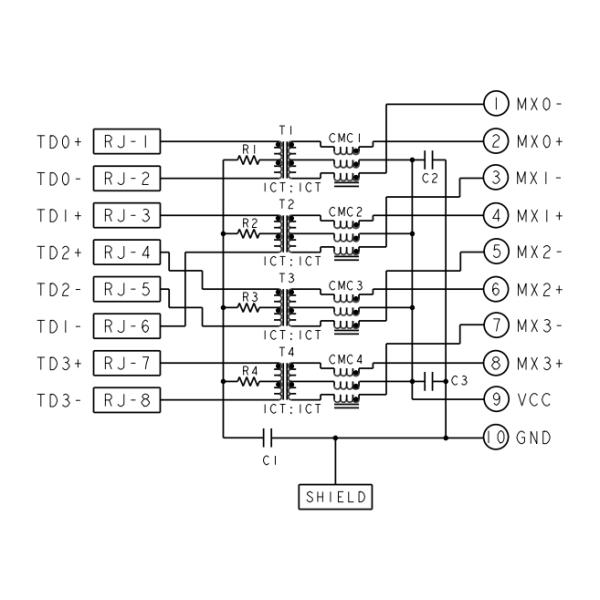

1-1840055-4 Drawing:

1-1840055-4 Drawing
