Vertical RJ45 Magjack SI-46019-F 1X1 Support 10/100Base T Speed

Features of 100Base T RJ45 Connector with Magnetic:

• Meets IEEE 802.3 10/100Base-T electrical requirements
• 100% hi-pot tested in production
• Comes with many different LED color combinations and options
• 50 micro-inches of gold plated contacts
• Lead-free wave-solder compatible
• UL recognized
• RoHS 6/6 compliant
• Vertical Mount Configuration
• 10/100BT AutoMDIX
• Can be used on non-traditional PCB mount applications

SI-46019-F RJ45 Magnetic Jack Specification:

Part Number	Number of Ports	Manufacturer	Description
SI-46019-F	1X1	LINK-PP	10/100 Base-T Through Hole RJ45 MagJack
Series	Port Configuration	Speed	Operating Temperature
RJ45 Magjack	Vertical	10/100Mbps	0 to 70°C
LED Type	Height Profile	EMI Tabs	PoE Rating
Y/G	Standard	No	N/A

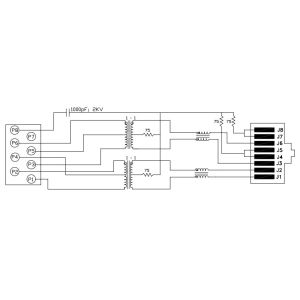

ELECTRICAL SPECIFICATIONS:

Turn Ratio(±3%)	(P6-P5-P3):(J6-J3) = 1CT:1CT (P6-P5-P3):(J6-J3) = 1CT:1CT
Inductance OCL	(P6-P3) = 350uH MIN/@ 100KHz, 0.1V, 8mA DC Bias (P2-P1) = 350uH MIN/@ 100KHz, 0.1V, 8mA DC Bias
Leakage Inductance	P6-P3 (With J6 and J3 Short) = 0.3 MAX. @ 1MHz P2-P1 (With J2 and J1 Short) = 0.3 MAX. @ 1MHz
Interwinding Capacitance	(P6,P5,P3) To (J6,J3) = 35pf MAX. @ 1MHz (P2,P4,P1) To (J2,J1) = 35pf MAX. @ 1MHz
DC Resistance	(J6-J3) = (J2-J1) = 1.2 ohms Max
Insertion Loss RS = RL = 100 ohms	1.1dB TYP @ 100KHz to 100MHz
Return Loss (P6-P3) = 100 ohms (P1-P2) = 100-ohm Ref	18dB MIN @ 1-30MHz
Return Loss (P6-P3) = 100 ohms (P1-P2) = 100-ohm Ref	12dB MIN @ 60-80MHz
Cross talk	40dB TYP @ 100KHz to 100MHz
Common to Common Mode Attenuation	35dB TYP @ 30MHz-100MHz
Voltage Withstand	(J1,J2) TO (P1,P2) = 1500VAC (J3,J6) TO (P3,P6) = 1500VAC
Rise Time RS = RL = 100 ohms	Output Voltage = 1V peak - 3.0 nS MAX Pulse Width = 112nS - 3.0 nS MAX
Operating Temperature Range	0℃ TO 70℃

Applications of Single Port RJ45 MagJack:

• Storage

• Switches

• Routers

• Servers

• Workstations

• Motherboards

• Blade servers or cards

• Network Interface cards

• Laptop computers

• Storage systems

• Mezzanine cards

• Single-board motherboards

• Industrial controllers

• Industrial PCs

• Daughter cards

• Printers
