RJ45 Durability Testing Rating & Material Specification:

1. Durability: 750 Insertions
2. Mating Force: 5 lbs./2.268 kgs.
3. Shield Material: Brass
Shield Finish: 30µ inches Nickel over
4. Contact Material: Phosphor Brass
Contact Plating Area: 50µ inches Nickel over selective gold plating 6µ inches
5. Housing Material: UL 94V-0 Thermoplastic

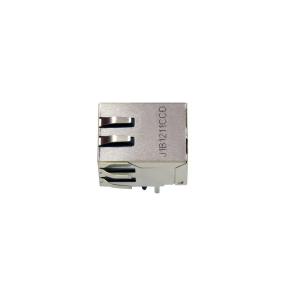

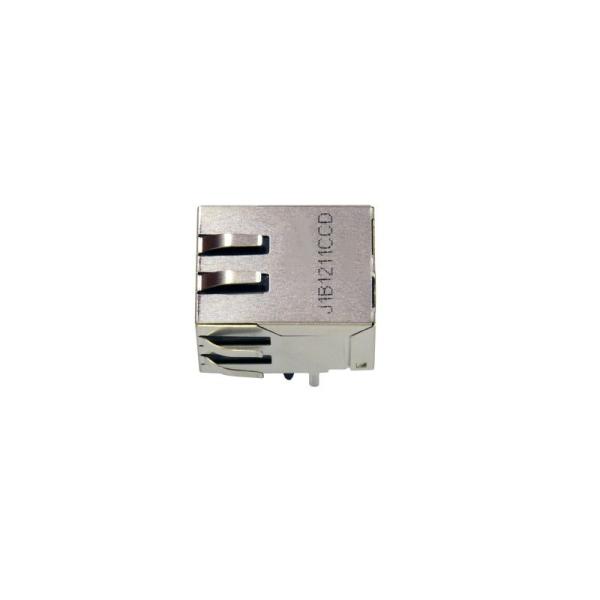

J1B1211CCD 10/100 BASE-T RJ45 Connector Features:

• Shielded with EMI Finger
• Through Hole Solder Mounting
• Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.
• Meets or exceeds IEEE 802.3 standard for 100 Base-T.
• Build-in 10/100 BASE-TX Magnetics and LEDs.
• 350 μH minimum OCL with 8 mA bias current.
• Minimum 1500 Vrms isolation per IEEE 802.3 requirement.
• All materials are RoHS and UL94-V0 compliant.
• RoHS peak solder rating 260°C.
• Meet EN60950-1 basic insulation requirement.
• Operating temperature range: -40℃ to +85℃.
• Storage temperature range: -40℃ to +125℃.

ELECTRICAL SPECIFICATIONS @ 25°C:

J1B1211CCD Datasheet:
