Description of V8BR-1AX1-GH Vertical RJ45 Jack​:

The V8BR-1AX1-GH is a 1x1 single port RJ45 connector, specifically designed for 1000BASE-T Ethernet applications requiring PoE capabilities. A vertical port configuration makes it easy to integrate into compact PCBs while maintaining reliable performance. It can implement 60W PoE to double the power its product can handle over any existing application while increasing its speed 10 times over standard Gigabit Ethernet. The vertical mount series ICMs are backward compatible with existing Ethernet networks and compatible with all major 1GBASE-T through 10GBASE-T PHYs, including the latest current mode and voltage-mode chips. Key features include green/yellow LEDs for clear network status indication and an extended operating temperature range from -40°C to 85°C, ensuring stable operation in both industrial and commercial environments. Suitable applications include single-board motherboards, industrial PCs, printers, daughter cards, industrial controllers, and any applications requiring a vertical mount Ethernet connector, where board space is a premium.

Main Materials of Vertical RJ45 MagJack​:

• Plastic Housing: Thermoplastic PBT, Black, Flammability Rating UL 94V-0
• Contact Plating: 30 Microns Hard Gold Plating or Equivalent
• Output Pins: Tin-coated copper Wire, Diameter 0.018 Inches, 100 Microns Minimum Tin Attenuation, Pins are Solder Dipped
• Metal Shield: Stainless Steel (All Ground Leads are Solder Dipped)

Electrical Specifications (@ 25℃):

V8BR-1AX1-GH Drawing -- Recommended PCB Layout:

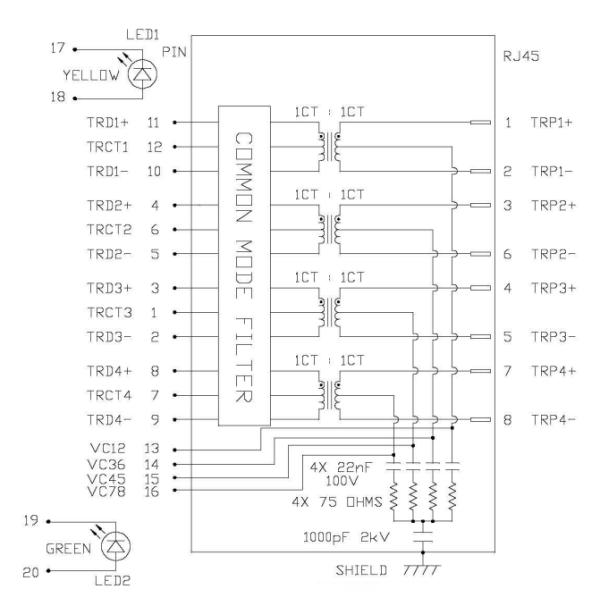

V8BR-1AX1-GH Drawing -- SCHEMATIC:

V8BR-1AX1-GH Drawing -- MECHANICAL SPECIFICATION:
