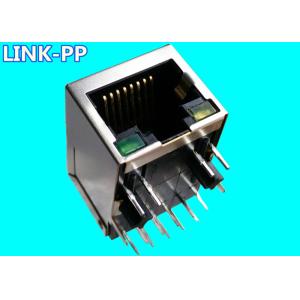

LPJG0820HENL 1x10/100/1000Mbps Gigabyte Mag Rj45 Modular jack

• LPJG0820HENL LINK-PP Rj45 Gigabit Jack
• 1x10/100/1000Mbps Ethernet Connectors
• Right Angle Shield With LED

Electrical Specifications @ 25℃ unless otherwise noted: 1.Inductance: 350uH min, 100KHz, 100mV, 8mADC, J1-J2;J3-J6;J4-J5;J7-J8, LP. 2.Insertion Loss: 1-100MHz:-1.0dB Max 3.Return Loss(dB Min): 1-40MHz:-18 40-60MHz:-14 60-80MHz:-12 80-100MHz:-10 4.Crosstalk: 1-100MHz:-30dB Min 5.Common Made Rejection: 1-100MHz:-35dB Min 6.Turns Ratio: TX=1CT:1CT RX=1CT:1CT 7.Isolation Voltage: 2500VDC 8.Operating Temperature Range: 0℃-70℃.

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
