HFJV1-1G16-L12RL , LPJD0773BDNL Vertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte

HFJV1-1G16-L12RL , LPJD0773BDNLVertical rj45 Jack, HFJV1-1G41-L12RL Gigabyte

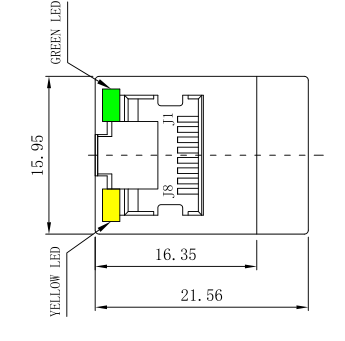

FastJack ™ 1x1 Vertical Gigabit RJ45

1.Gigabit (10/100/1000) Ethernet RJ45
2.IEEE802.3ab Compliant
3.350uH min OCL at 8mA DC Bias Across theFull Temp Range
4.30µ” Gold Plating (min) on Contacts
5.100% Compliance Testing
6.1500Vrms Hi-Pot

7..Designing Model: HFJV1-1G16-L12RL

8..Mass Production Model: LPJD0773BDNL

MAG., REVERSE LATCH , LED optional, EMI-finger Optional.

Electrical Specifications @25℃
1.Impedance: 100 ohms
2.OCL: 350uH Min
@100KHz,0.1V,8mADC BIAS
3.Turns Ratio: 1∶1 ±3%
4.Insertion Loss:
1-100MHz:-1.1dB Max
5.Return Loss(dB Min):
1-40MHz:-18 60MHz:-14
80MHz:-12 100MHz:-10
6.Crosstalk:
1-100MHz:-35dB Typ
7.Common Mode Rejection(dB Typ):
0.1-30MHz:-38 30-60MHz:-35
60-100MHz:-30
8.Isolation Voltage: 1500Vrms
9.Operating Temperature:0～70℃
