KLU1S041X LF , LPJ0013DNL RJ45 Single Port , 10/100Mbps Magnetics

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	KLU1S041X LF
Certification :	UL,ROHS,Reach,ISO
Price :	$0.09-$1.85
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	250000-320000/Month
Delivery Time :	Stock

Add to Cart

Product Details
Company Profile

KLU1S041X LF , LPJ0013DNL RJ45 Single Port , 10/100Mbps Magnetics

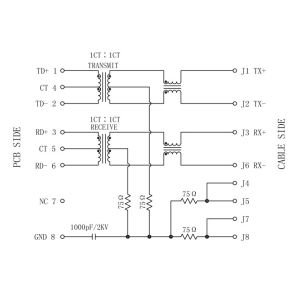

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS

1.RJ-45 needs to be matched FCC standard
2.Complies with requirement of IEEE802.3u standards.
3.RJ 45 connector with 10/100 BASE-TX magnetic.
4.Design for 10/100 BASE transmission over UTP-5 cable
5.Operating temperature range: 0℃ to +70℃.
6.Storage temperature range: -25℃ to +125℃

1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
