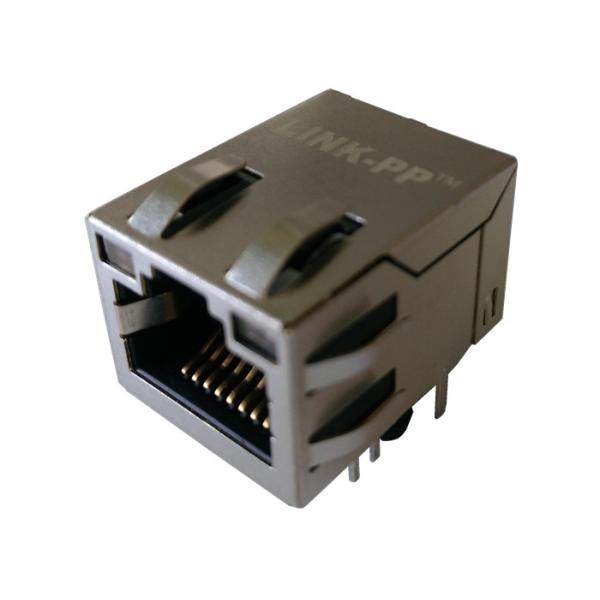

ON316655 XFMRS Rj45 With Built in Magnetics Gigabit Wireless Connector

ON316655 Electrical Specifications @25℃

1.OCL(100KHz 0.1V 8mA): 350uH Min
2.Turns Ratio: 1CT∶1CT %%P3%P3.Insertion Loss:
1-100MHz:-1.1dB Max
4.Return Loss(dB Min):
1-40MHz:-18 60MHz:-14
80MHz:-12 100MHz:-10
5.Crosstalk:
1-100MHz:-35 dB Typ
6.Common Mode Rejection:
0.1-30MHz:-50 dB Typ
30-60MHz:-40dB Typ
60-100MHz:-35dB Typ
7.Isolation: 1500Vrms
8.Operating Temperature: -40℃～+85℃

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
