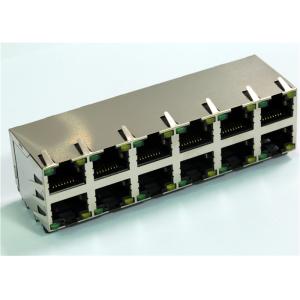

2x6 Port Female Connectivity to Ethernet, Cat5,5e

Electrical:
1.Voltage Rating : 125VAC RMS
2.Current Rating : 1.5AMP
3.Contact Resistance : 50 MΩ MAX
4.Insulation Resistance : 500 MΩMin @500V DC
5.Dielectric Strength : 1000VAC RMS 60HZ,1MIN

Mechanical:
1.Housing&Insert Material : PBT UL94V-0
2.Contact Material : Diameter 0.46mm Phosphor Bronze
Gold Plating Over Nickel
3.Shield : 0.20-0.25mm Thickness Brass
With Tin Plated
4.Operation Life : 750 Cycless Min
Environmental
1.Storage : -40℃ to +85℃
2.Opertion : -40℃ to +85℃
3.Wave solder tip temperature: 265℃ Max, 5 Sec Max
UL Certification : File Number E484635

Other lists Available

LPJE1012-XAGNL
LPJE1012XAGNL
LPJE10120AGNL
LPJE10121AGNL
LPJE10122AGNL
LPJE10123AGNL
LPJE10124AGNL
LPJE1012BWNL
LPJE10120CNL
LPJE10120AHNL
LPJE10121AHNL
LPJE10122AHNL
LPJE10123AHNL
LPJE1012XAHNL

Do you also interested in External Magnetic Transformer ?

Single port ? Dual Ports ? Quad Ports ?

10/100Base-T ? 10/100/1000Base-T ?
