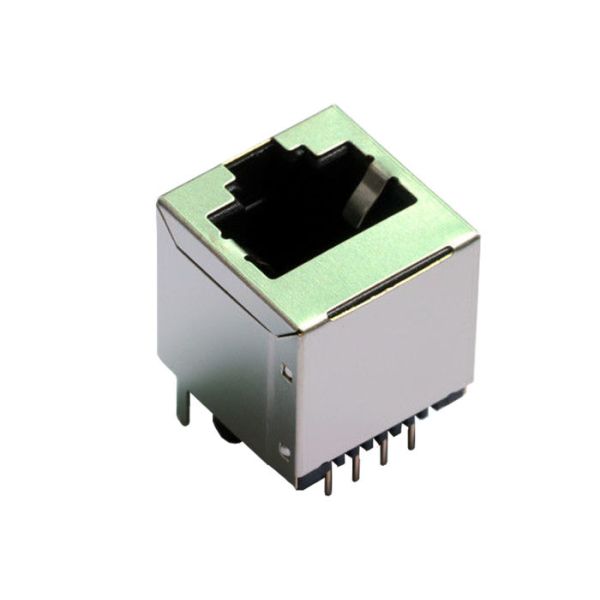

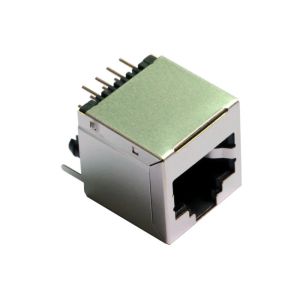

    HR951175A 10 Base - T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : HR951175A
    Certification : UL,ROHS,Reach,ISO
    Price : $0.09-$1.85
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 3000000/Month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    HR951175A 10 Base - T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL

    HR951175A 10 Base-T Vertical RJ45 JackWith Integrated Magnetic LPJD0055DNL

    Specifications
    Vertical RJ45 Connector with 10 Base-T Integrated Magnetics ,Without LED,RoHS
    LINK-PP Part NumberLPJD0055DNL
    HanRun Part NumberHR951175A
    Application-LanETHERNET(NoN PoE)
    AutomDXYES
    Bst CircuitYES
    Configuration RXT,C
    Configuration TXT,C
    Contact Mating Area PlatingGOLD 6u"/15u"/30u"
    Cores per Port4
    DiodesNO DIODES
    LED OptionWITHOUT LEDS
    LatchTAB UP
    Number of Ports1X1
    PCBFR4
    PCB Mount AngleSIDE ENTRY
    PCB Retaining PostT POST
    Package Height (mm)17.50
    Package Length (mm)17.50
    Package Width (mm)16.80
    Pin TypeTHT SOLDER
    RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
    SearchYES
    Shield EMI TabsWITHOUT
    Speed10 BASE-T
    Temperature0 TO 70℃
    Turns Ratio RX1CT:1CT
    Turns Ratio TX1CT:1CT

    BeagleBone Black

    LINK-PP RJ45 Designed for BeagleBone Black of Texas Instrument

    http://www.ti.com/tool/beaglebk#0

    a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.


    LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
