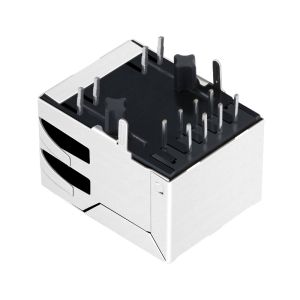

LPJ0011GENL Cross Erni 203199 Rj45 8C8T 1x1 Integrated Magnetic LED Aligned

• 10/100Mbps Ethernet Port rj45
• 1X rj45, INT. MAG., LED, REVERSE LATCH
• 203199 Rj45 Mod Jack 8C8T
• LPJ0011GENL Cross 203199
• LED Aligned, EMI-finger Optional.

1.Turn Ratio(±2%): TX=1CT:1 RX=1CT:1 2.Inductance OCL: 350uH MIN @ 100KHz 0.1V 8mA DC Bias 3.Insertion Loss: -1.0dB MAX @ 1.0-100MHz 4.Return Loss: -18dB MIN @ 1-30MHz -15dB MIN @ 30-60MHz -12dB MIN @ 60-80MHz -10dB MIN @ 80-100MHz 5.Cross talk: -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz 6.Common Mode Rejection: -40dB MIN @ 30MHz -35dB MIN @ 60MHz -30dB MIN @ 100MHz 7.Hipot: 1500Vrms	8.LED Lamp: Wave Length:GREEN/YELLOW:570nm/590nm Forward Voltage(Vf): 1.8V-2.6V (Test Condition: 20mA) 9.Operating Temperature Range:0℃ TO 70℃
