• LPJD4012BENL
• Top Entry Rj-45 Model
• Rj45 With Integrated Magnetic
• 1x10/100Mbps Vertical Rj45 Connectors
• 8P8C Straight Rj45 Shield With LED

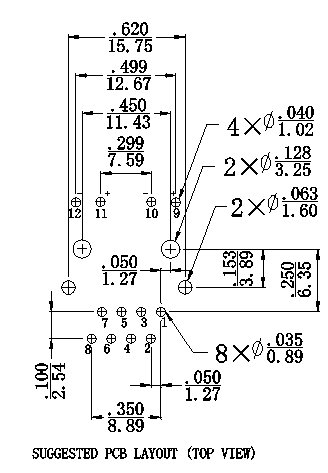

• LPJD4012BENL.pdf

TEST NOTES(25±5℃) 1.TR:(100KHz,0.1V); TX=1CT:1CT RX=1CT:1CT 2.LX:(100KHz,100mV,8mA,DC Bias) PINS:(P1-P3),(P4-P6)=350uH MIN 3. Transmitter filter & Receiver Filter Type: Balance low pass 100Ω impedance 4. HIPOT: Input(P1-P3)TO Output(J1-J2):1500VAC 60sec Input(P4-P6)TO Output(J3-J6):1500VAC 60sec 5. INSERTION LOSS: -1.0dB MAX @ 1.0MHz TO 100MHz 6. RETURN LOSS: -18dB MIN @ 1.0MHz TO 30MHz -16dB MIN @ 30MHz TO 60MHz -12dB MIN @ 60MHz TO 80MHz 7. CROSS TALK: -30dB MIN @1.0MHz TO 100MHz 8. COMMON MODE REJECTION: -30dB MIN @1.0MHz TO 100MHz 9. OPERATING TEMPERATURE: -40℃～+85℃.
