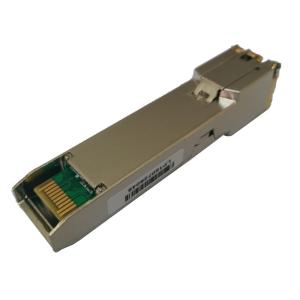

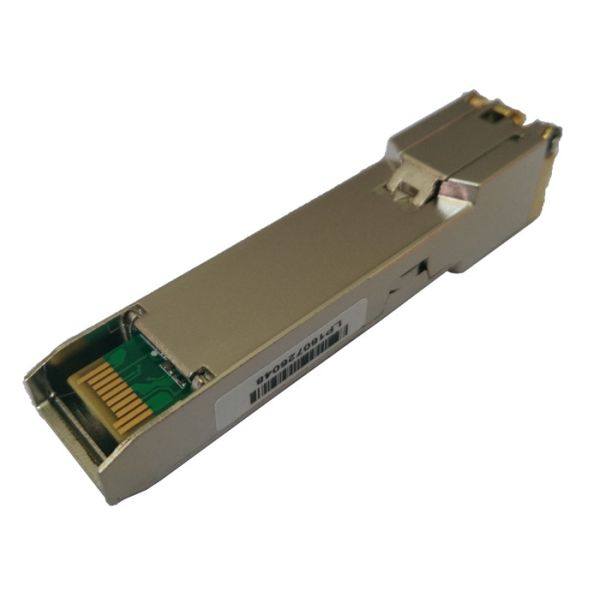

FCLF8521P2BTL 1000BASE-T COPPER SFP Optical Transceiver RoHS-6 Compliant

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	FCLF8521P2BTL
Certification :	ISO 9001,ISO 14001,UL,SGS,REACH168
Price :	$0.11-$35
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	350K/Month
Delivery Time :	Stock

Add to Cart

Product Details
Company Profile

FCLF8521P2BTL 1000BASE-T COPPER SFP Optical Transceiver RoHS-6 Compliant

Specifications:	FCLF8521P2BTL
Product Class:	Fiber Optics
Product Family:	Optical Transceivers
Product Series:	SFP
Product Name:	SFP Optical Transceivers
Status Available:	Active
RoHS:	RoHS-6 Compliance

Specifications:
Data Rate:	1000 Mbps
Wavelength:	-
Maximun Distance:	-
Fiber Type:	Singlemode Glass
Emitter:	DWDM EML
Voltage-Supply:	3.3V
Applications:	Ethernet
Connector Type:	RJ45
Mounting Type:	GBIC
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL):	1 (Unlimited)

Feature Description:

● Up to 1.25Gb/s bi-directional data links
● Hot-pluggable SFP footprint
● Extended case temperature range (-40°C to +85°C )
● Fully metallic enclosure for low EMI
● RoHS compliant and Lead Free
● Low power dissipation (1.05 W typical)
● Compact RJ-45 connector assembly
● Access to physical layer IC via 2-wire serial bus
● 10/100/1000 BASE-T operation in host systems with SGMII interface

Feature Description:

● FCLF8520P2BTL, FCLF8521P2BTL and FCLF8522P2BTL 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3 . The transceiver is RoHS compliant and per Directive 2011/65/EU and Finisar Application Note AN-2038. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
● The FCLF8520P2BTL uses the SFP’s RX_LOS pin for link indication, and 1000BASE-X autonegotiation should be disabled on the host system. The FCLF8521P2BTL is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded). See AN-2036, “Frequently Asked Questions Regarding Finisar’s 1000BASE-T SFPs”, for a more complete explanation on the differences between the two models and details on applications issues for the products. The FCLF8522 shall support both RX_LOS pin for link indication and 1000BASE-X auto-negotiation.
