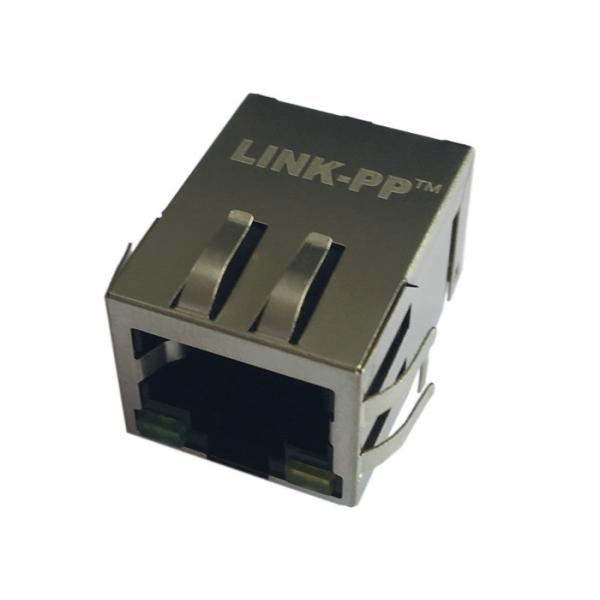

    Magnetic RJ45 Jack LPJ0017GANL Conn 10/100Base 8 Position LED-Y-G Shield

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : LPJ0017GANL
    Certification : UL,ROHS,Reach,ISO
    Price : Supportive
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 4600K.PCS/Month
    Delivery Time : Stock
    • Product Details
    • Company Profile

    Magnetic RJ45 Jack LPJ0017GANL Conn 10/100Base 8 Position LED-Y-G Shield

    Magnetic RJ45 Jack LPJ0017GANL Conn 10/100Base 8 Position LED-Y-G Shield
    1.10/100 Base-T LPJ0017GANL
    2.1X1 Tab-down Magnetic RJ45 Jack
    3.Through hole RJ45 modular jack LINK-PP
    4. 21.25mm length RJ45 Magjack PCB Mounting Connector to Ethernet
    Turn Ratio(±2%):TX=1CT:1CT RX=1CT:CT
    Inductance OCL350uH MIN/@ 100KHz,0.1V,8mA DC Bias
    Insertion Loss-1.0dB MAX @ 1-65MHz
    Return Loss-20dB MIN @ 1-10MHz
    -16dB MIN @ 10-30MHz
    -12dB MIN @ 30-60MHz
    -10dB MIN @ 60-100MHz
    Cross talk-40dB MIN @ 1-30MHz
    -35dB MIN @ 30-60MHz
    -30dB MIN @ 60-100MHz
    Common Mode Rejection-30dB MIN @ 1-50MHz
    -20dB MIN @ 50-150MHz
    Hipot Test1500Vrms MIN
