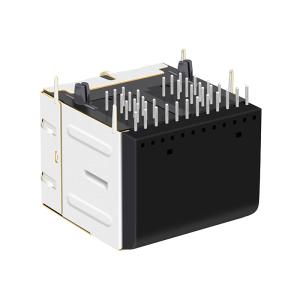

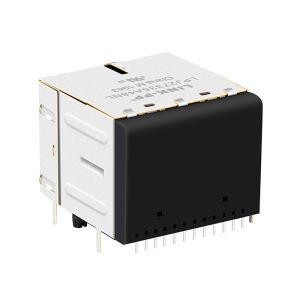

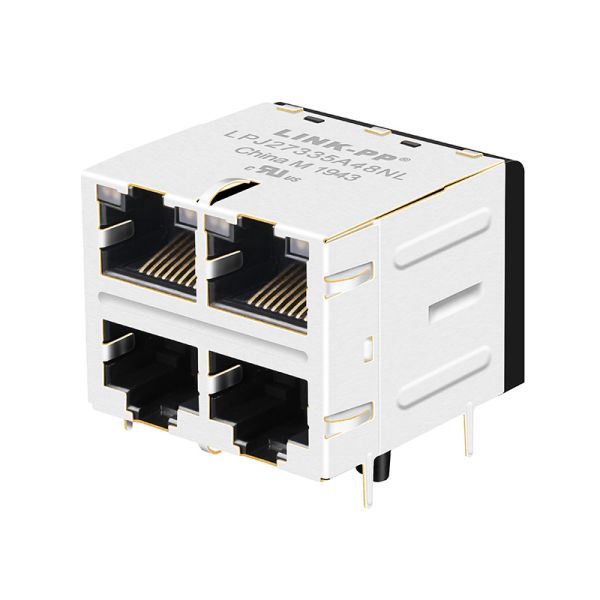

JX20-0252NL | LPJ27335A48NL Coon Stacked RJ45 2x2 100Base-Tx 1CT/1CT RoHS

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: JX200252NL LPJ27335A48NL Coon Stacked RJ45 2x2 100BaseTx 1CT1CT RoHS
Brand: LINK-PP
Price: 0.11 USD

Add to Cart

JX20-0252NL | LPJ27335A48NL Coon Stacked RJ45 2x2 100Base-Tx 1CT:1CT RoHS

LPJ27335A48NL 4 Port RJ45 Magjack Connector Through Hole 10/100Base-T, AutoMDIX

LPJ27335A48NL Attributes
Category	Connectors, Interconnects
Family	Modular Connectors - Jacks With Magnetics
Manufacturer	Pulse Electronics Corporation
Series	PULSEJACK™ JX20-0252NL Cross Part
Packaging	Tray
Part Status	Active
Connector Type	RJ45
Number of Ports	4
Number of Rows	2
Applications	10/100Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	1.005" (25.53mm)
LED Color	Green, Orange - Green, Orange
Number of Cores per Jack	4
Shielding	Shielded, EMI Finger
Features	Board Guide
Tab Direction	Up and Down
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Shield Material	Copper Alloy
Housing Material	Thermoplastic
Operating Temperature	-40°C ~ 85°C

Product Tags:

stacked rj45 connectors
