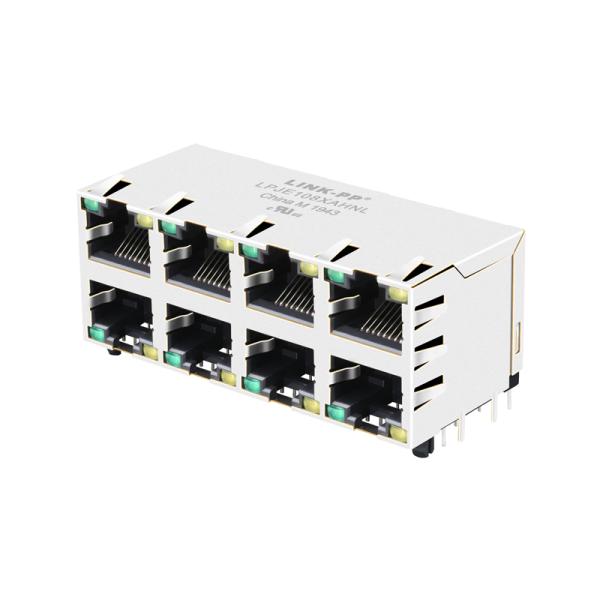

RJSAE-5384-04 Compatible LPJE108XAHNL 2X4 Port RJ45 Jack Tab Up
without Integrated Magnetics
RJSAE-5384-04 Compatible LINK-PP LPJE108XAHNL Connector Ethernet without
Integrated Magnetics for Intercom and Embedded Main Board(2X4
Port,Green/Yellow LED)
The LPJE108XAHNL supports speed 10/100 Base-T, it is compliant to
IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can
be used to support application, such as Intercom,Embedded Main
Board, switch and router.
| LINK-PP Part Number | LPJE108XAHNL |
| Part Number | RJSAE-5384-04 |
| Part Status | Active |
| Number of Ports | 2x4 Port |
| Application - LAN | Ethernet(NoN PoE) |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Temperature | -40℃ TO +85℃ |
| Latch | Both |
| Orientation | 90° Angle (Right) |
| Shield EMI Tabs | With |
| PCB Mount Angle | SIDE ENTRY |
| Cores Per Port | 8 |
| LED Option | Green/Yellow |
| Package Height (mm) | 25.4 |
| Package Length (mm) | 28.15 |
| Package Width (mm) | 63.86 |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
RJSAE-5384-04 2X4 Port RJ45 Jack Package:
RJSAE-5384-04 Compatible LPJE108XAHNL 2X4 Port RJ45 Jack
