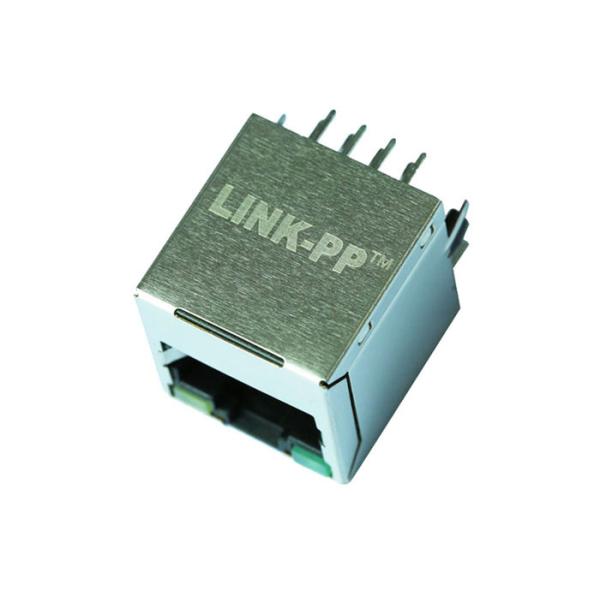

Features of RJ45 with Integrated Magnetics Connector:

1. Connector Material:

• Housing: Lcp Black Ul94 V-0
• Insert: Lcp Black Ul94 V-0
• Shield: Brass
• Shield Plating: Nickel
• Contact: Copper Alloy
• Contact Plating: Selective Gold, Min. 0.76um (30μInch) In Contact Area Over Min. 1.27um (50uinch) Nickel
• Solder Pin Plating: 3.05um (120uinch) Tin Over 1.27um (50uinch) Nickel Over All
• Shielding Pin Plating: Nickel

2. RJ45 Cavitiy Dimension Conform To Fcc Part 68
3. The Part Is Recommended For Reflow Soldering Process Peaksoldering: Temperature Max.+260'C, Max. 10s
4. Operating Temperature = -40°C To +85°C
5. Storage Temperature= -40'C To +85°C
6. Jack Configuration: 1 X1
Tab Direction: TOP

5-2301995-3 Electrical Specifications:

1. TURN RATIO @100kHz:

• (P1~P3):(J1~J2)= 1:1±2%
• (P4~P6):(J3~J6)= 1:1±2%

2. PRIMARY INDUCTANCE: 350μH MIN @100kHz, 0.1V 8mA DC BIAS
3. DC RESISTANCE: 1.2 OHMS MAX
4. INSERTION LOSS: 1-100MHz= -1.2dB MAX
5. RETURN LOSS:

• 1-30MHz = -16dB MIN.
• 30-60MHz = -16dB+20l0g(f/30MHz) MIN.
• 60-80MHz = -10dB MIN.

6. CROSS TALK:1-100MHz = -30dB MIN.
7. COMMON TO COMMON MODE ATTENUATION: 1-100MHz = -30dB MIN.
8. ISOLATION: PHY SIDE TO LINE SIDE: 2250VDC
