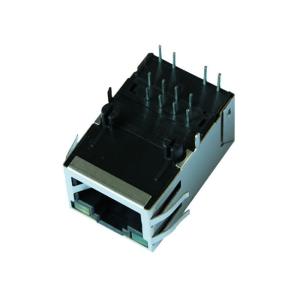

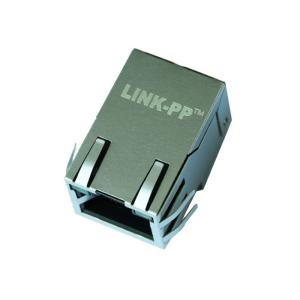

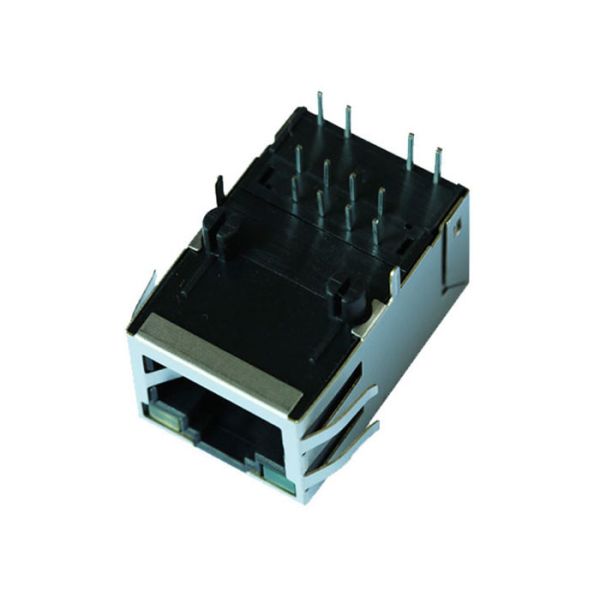

HR941105CE RJ45 Modular Jack Integrated 10 /100Base-T LPJ4011GENL
| Shielded 1x1 Port 8P8C RJ45 Female Connector with 10/100/1000
Base-T Integrated Magnetics ,Yellow/Green LED,Tab UP,RoHS |
| LINK-PP Part Number | LPJG17410AGNL |
| Other Part Number | RH8912113DPG |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | Without DIODES |
| LED Option | Yellow/Green LEDs |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.530 |
| Package Height (mm) | 13.45 |
| Package Length (Inches) | 0.994 |
| Package Length (mm) | 25.25 |
| Package Width (Inches) | 0.636 |
| Package Width (mm) | 16.15 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100/1000 Base-T |
| Temperature | -55 TO + 125 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC
card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways
setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics
,Cypress, Freescale,EKF.......
EMS Application
Flexible PCB Assembly; Rigid-Flexible PCB Assembly;
Microelectronic, Flip Chip; Microelectronic, Chip On Board;
Optoelectronic Assembly; RF / Wireless Assembly; Through Hole
Assembly; Surface Mount Assembly; System Assembly; Printed Circuit
Board Assembly
