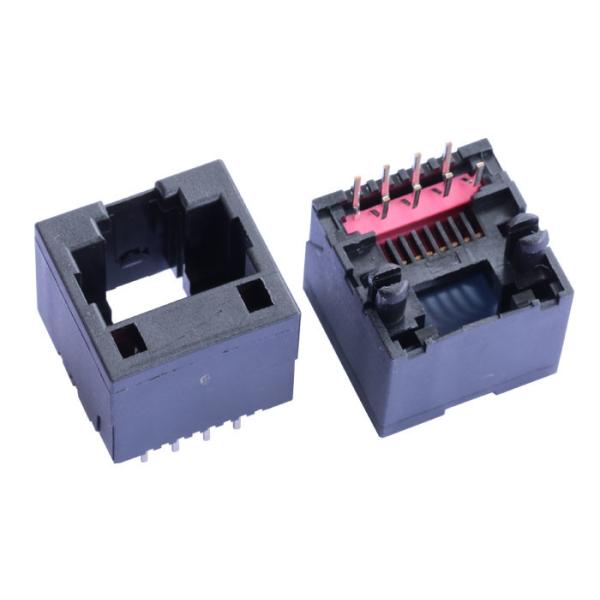

95503-2881 Vertical 8P8C Molex RJ45 Connector Without Magnetic LPJE682NNL

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 955032881 Vertical 8P8C Molex RJ45 Connector Without Magnetic LPJE682NNL
Brand: LINK-PP
Price: 0.09 USD

Add to Cart

95503-2881 Modular Jack Materials:

95503-2881 RJ45 Without Magnetics Specifications:

Top Entry 8P8C Vertical RJ45 Jack
LINK-PP Part Number	LPJE682NNL
Molex Part Number	95503-2881
Status	Active
Category	Modular Jacks and Plugs
Port Configuration	1x1
Positions / Loaded Contacts	8/8
Magnetic	No
Orientation	Vertical (Top Entry)
Termination Interface Style	Through Hole
Performance Category	3
Power over Ethernet (PoE)	N/A
Shielded	Unshielded
Maximum per Contact Current	1.5A
Maximum Voltage	125V DC
Durability	2500 mating cycles max
Flammability	94V-0
Jack Height	15.70mm
Net Weight	2.600/g
Lightpipes /LEDs	None
PCB Locator	Yes
PCB Retention	Yes
Recommended PCB Thickness	1.57mm
Mating Interface Pitch	1.02mm
Termination Interface Pitch	1.27mm
Mating Plating min	0.051µm, 1.016µm
Termination Plating min	1.905µm
Operating Temperature Range	- -40° to +85°C
Waterproof / Dustproof	No
Packaging Type	Tray
