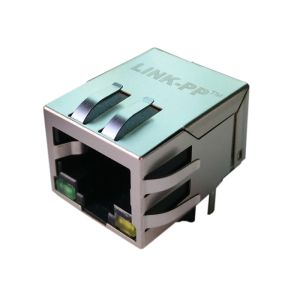

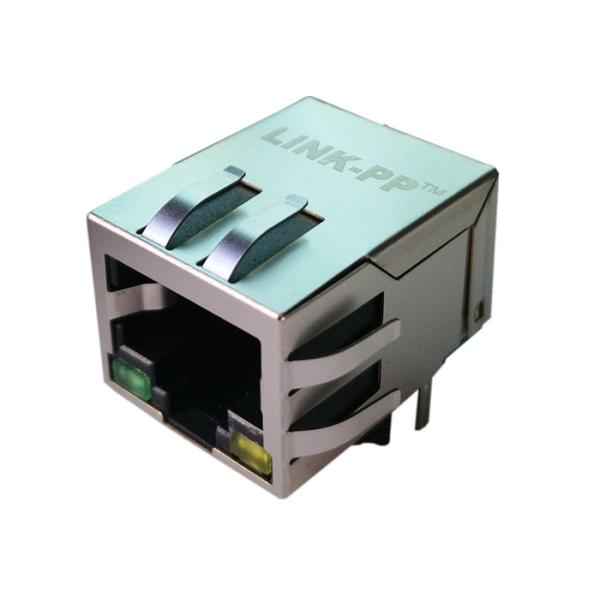

HFJ11-E003E-S4L21RL RJ45 Magnetic 1x10/100Mbps, Right Angle Shield
LPJ4012GDNL
| Shielded 1x1 Port RJ45 Female Connector with 10/100 Base-T
Integrated Magnetics,Yellow/Green LED,Tab Down,RoHS |
| LINK-PP Part Number | LPJ4012GDNL |
| Halo Part Number | HFJ11-E003E-S4L21RL |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 4 |
| Diodes | YES |
| LED Option | Yellow/Green |
| Latch | TAB Down |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.524 |
| Package Height (mm) | 13.30 |
| Package Length (Inches) | 0.837 |
| Package Length (mm) | 21.25 |
| Package Width (Inches) | 0.627 |
| Package Width (mm) | 15.93 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 10/100 Base-T |
| Temperature | -40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz/0.1V 8mA DC Bias
3.Insertion Loss:
-1dB MAX @ 1-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot Test: 1500Vrms
8.Operating Temperature Range: -40℃ TO +85℃ |
|
 |  |
