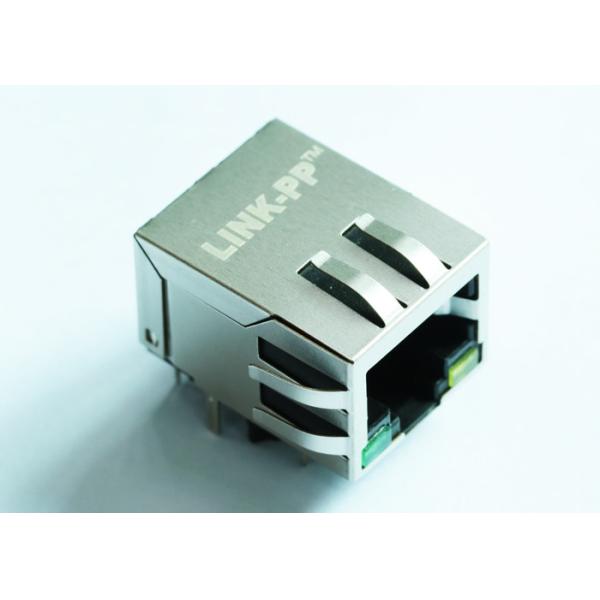

ARJM11D7-805-AN-CW4 RJ45 Modular Jack Integrated 2.5G Base-T Tab Up
| Connector Type | RJ45 | |
|---|
| Number of Ports | 1 | |
|---|
| Number of Rows | 1 | |
|---|
| Applications | 2.5G Base-T, AutoMDIX | |
|---|
| Mounting Type | Through Hole | |
|---|
| Orientation | 90° Angle (Right) | |
|---|
| Termination | Solder | |
|---|
| Height Above Board | 0.535" (13.59mm) | |
|---|
| LED Color | Green, Orange - Yellow | |
|---|
| Number of Cores per Jack | 8 | |
|---|
| Shielding | Shielded, EMI Finger | |
|---|
| Features | Board Lock | |
|---|
| Tab Direction | Down | |
|---|
| Contact Material | - | |
|---|
| Contact Finish | Gold | |
|---|
| Operating Temperature | -40°C ~ 85°C | |
|---|
| Contact Finish Thickness | 30.0µin (0.76µm) |
|---|
Applications For Terminal User
Used for networking and communication equipments such as HUB, PC
card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways
setup,Border Gateway Protocol,fast ethernet switch ...
Competitive Advantage
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Main Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics
,Cypress, Freescale,EKF.......
EMS Application
Flexible PCB Assembly; Rigid-Flexible PCB Assembly;
Microelectronic, Flip Chip; Microelectronic, Chip On Board;
Optoelectronic Assembly; RF / Wireless Assembly; Through Hole
Assembly; Surface Mount Assembly; System Assembly; Printed Circuit
Board Assembly
Business partner
LINK-PP Is The Preferred Designer and Manufacturer of Intel, Intel
MinnowBoard MAX Supported by LINK-PP Magnetic RJ45
PN#LPJG16314A4NL.
For any further information,Welcome to visit www.intel.com, you
will find out our logo"LINK-PP" on MinnowBoard MAX .
Other Part Number
| ARJM11C7-809-AB-ER4-T |
| ARJM11C7-809-AD-ER4-T |
| ARJM11D7-809-AB-ER4-T |
| ARJM11D7-809-AD-ER4-T |
| ARJM11C7-809-NN-ER2-T |
| ARJM11D7-809-NN-ER2-T |
| ARJM11A1-809-KB-ER2-T |
| ARJM11B1-809-KB-ER2-T |
| ARJM11C7-805-KB-CW2 |
| ARJM11D7-805-KB-CW2 |
| ARJM11A1-805-JA-EW4 |
| ARJM11B1-805-JA-EW4 |
| ARJM11B1-809-JA-EW4 |
