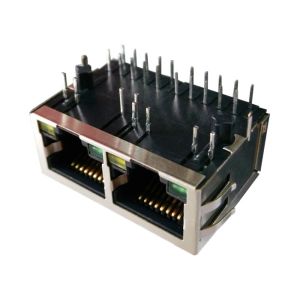

ARJM12A1-805-BA-CW2 1x2 Side Entry Multi-port RJ45 Connector With
2.5G Magnetic
| 1x2 Port 8P8C RJ45 Jack Connector with 2.5G Base-T Integrated
Magnetics, Yellow/Green LED,Tab Down,RoHS |
| LINK-PP Part Number | LPJGxxxxNL |
| Abracon LLC Part Number | ARJM12A1-805-BA-CW2 |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | Yellow/Green LEDs |
| Latch | TAB Down |
| Number of Ports | 1X2 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.535 |
| Package Height (mm) | 13.60 |
| Package Length (Inches) | 0.839 |
| Package Length (mm) | 21.30 |
| Package Width (Inches) | 1.230 |
| Package Width (mm) | 31.24 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | With |
| Speed | 2.5G Base-T |
| Temperature | 0°C ~ 70°C |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete
Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And
Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer
Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From
Every Employee
• The Company Standard Is Defect-Free Products And Services
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
Applications:
Used for networking and communication equipments such as HUB, PC
card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
2600 staff,
100% test
Flexible delivery time
FAQ
1. Are you the real manufacturer?
Yes. We are the real manufacturer since 1997
2. Can you accept small order?
Yes, small order is available .We support new project of our
customers as we know business is always from
small order.
3. Which kind of certification you have ?
ISO9001, SGS, UL, RoHs.
4. What is your delivery time?
Usually within 2-3 working days
5. What is your payment way?
T/T, L/C, D/P,MoneyGram,Western Union and Paypal.
6. Can you supply customized products and logo?
Yes. We supply OEM&ODM service. You can send us your drawing.
