Specifications of Amphenol Modular Jack

1. Materials:

• Contacts: Phosphor Bronze
• Plating: Selective Gold Plating on Mating Surfaces.
• 50 Micro" Min. Nickel Overall.
• 100 Micro" Min. Matte Tin or Gold Flash on Tails.
• Housing: High-temperature thermoplastic, Flammability Rating UL 94V-0
• Color - Black.
• Shield: Copper Alloy
• Plating: Nickel with Tin Dipped PCB Tails.

2. LED Specifications:

• Forward Voltage: 1.83.4 Volts.
• Reverse Voltage: 5.0 Volts Max.
• Luminous Intensity: 360 MCD (at If=20mA)
• Storage Temperature: -55° to 85° C
• Plating on Tails: Tin or Tin/Copper Alloy over Silver

3. Mechanical Characteristics:

• Mating Force: 5.0 lbs Maximum
• Durability: 750 Cycles for 50u" Gold Plating

4. Electrical Characteristics:

• Contact Resistance: 20 Millions Maximum.
• Insulation Resistance: 500 Megohms Minimum
• Current Rating: 1.5 Amps per Contact
• Voltage Rating: 125 Volts AC

5. Environmental Specifications:

• Operating Temperature: -55°C to +85°C
• Recommended Soldering Temperature:
• Wave Soldering Peaked at 260°C for 5-8 Seconds.

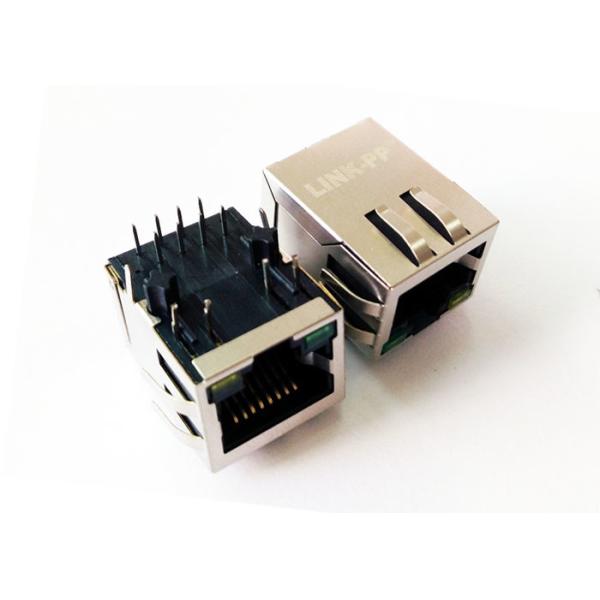

RJSBE5381C1​ RJ45 8P8C Modular Connector Details:
