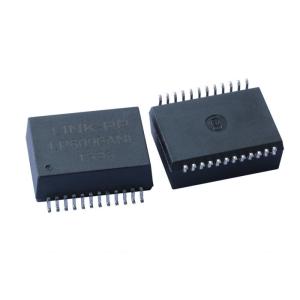

Elevate Connectivity with HX6096NL: 1000Base-T Transformer Modules For PoE+ Application

Technical Specifications:

1. No. of Ports: Single Port configuration for streamlined network setups.
2. Turns Ratio: 1:1 Transmitter and Receiver help maintain signal integrity.
3. Inductance: Features 300μH inductance at 25°C for stable power transfer in PoE+ applications.
4. Transformer Mounting Type: Surface Mount design for easy integration and flexible placement.
5. ROHS Compliant: Manufactured under sustainable and environmentally friendly standards.

Description of HX6096NL Gigabit Transformer:

HX6096NL Power over Ethernet Pulse (PoE+) Transformer – designed to redefine your network infrastructure. These Surface Mount Transformer modules integrate magnetics, available with or without LEDs. Meets the needs of a variety of applications including switches, routers, base stations, access points and IPTV. Contact us for discounted prices.

Features of Magnetic Transformer Modules:

This Gigabit Transformer is crafted with precision and innovation to elevate your network performance.

• The HX6096NL Transformer Module Supports 1000BASE-T high-speed applications for fast and reliable data transmission.
• Meets IEEE 802.3 specifications, ensuring compliance with industry standards for reliable and efficient network performance.
• Seamlessly integrates magnetics into the transformer module, optimizing space and ensuring reliable power delivery.
• The HX6096NL supports Power over Ethernet Plus (PoE+), with a 4-pair PoE rating of 75W, powering modern network infrastructure while transmitting data.
• Available with or without LEDs, providing flexibility in design and functionality.
• With its 1CT:1CT Transmitter, and 1CT:1CT Receiver turns ratio, this Gigabit Transformer Module can adapt to various network configurations and is compatible with various devices.
• Ideal for switches, routers, base stations, access points, IPTV, and more, catering to the needs of modern networking environments.
• Thermoset Plastic Material With a Flammability Rating of UL94V-0 or Better.

Electrical Characteristics @ 25℃:

HX6096NL Datasheet :
