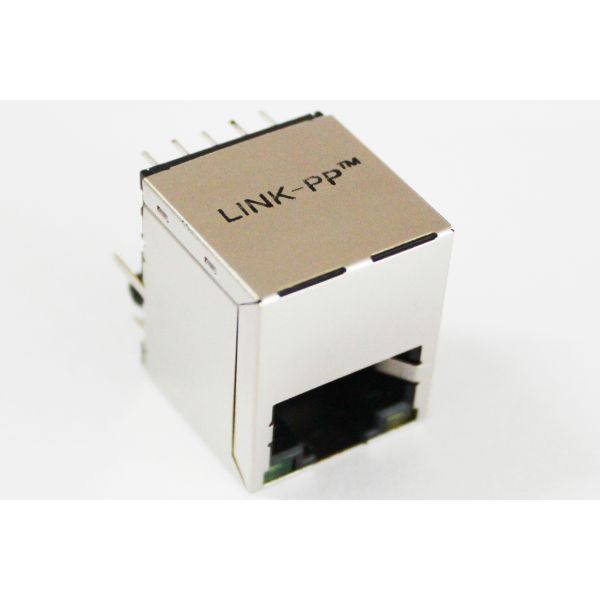

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

1.10/100/1000 Base-T

2.1X1 Tab-down
3.Through hole RJ45 modular jack

4.21.3mm length RJ45 Magjack

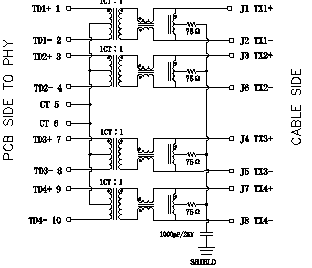

ELECTRICAL SPECFICATIONS @25℃ 1.Turn Ratio(±2%): TX=1CT:1 RX=1CT:1 2.Inductance OCL: 350uH MIN @100KHz,0.1V,8mA DC Bias 3.Insertion Loss: -1.2dB MAX @ 0.3-100MHz 4.Return Loss: -16dB MIN @ 1-30MHz -13.5dB MIN @ 40MHz -11.5dB MIN @ 50MHz -10dB MIN @ 60-80MHz 5.Cross talk: -40dB MIN @ 30MHz -36dB MIN @ 60MHz -30dB MIN @ 100MHz 6.Common Mode Rejection: -35dB MIN @ 30MHz -32dB MIN @ 60MHz -30dB MIN @ 100MHz 7.Hipot Test: 1500Vrms MIN 8.Operating Temperature: 0℃ TO 70℃.

Applications: Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem Competitive Advantage: 16 years production experience, 2600 staff, 100% test Flexible delivery time

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
